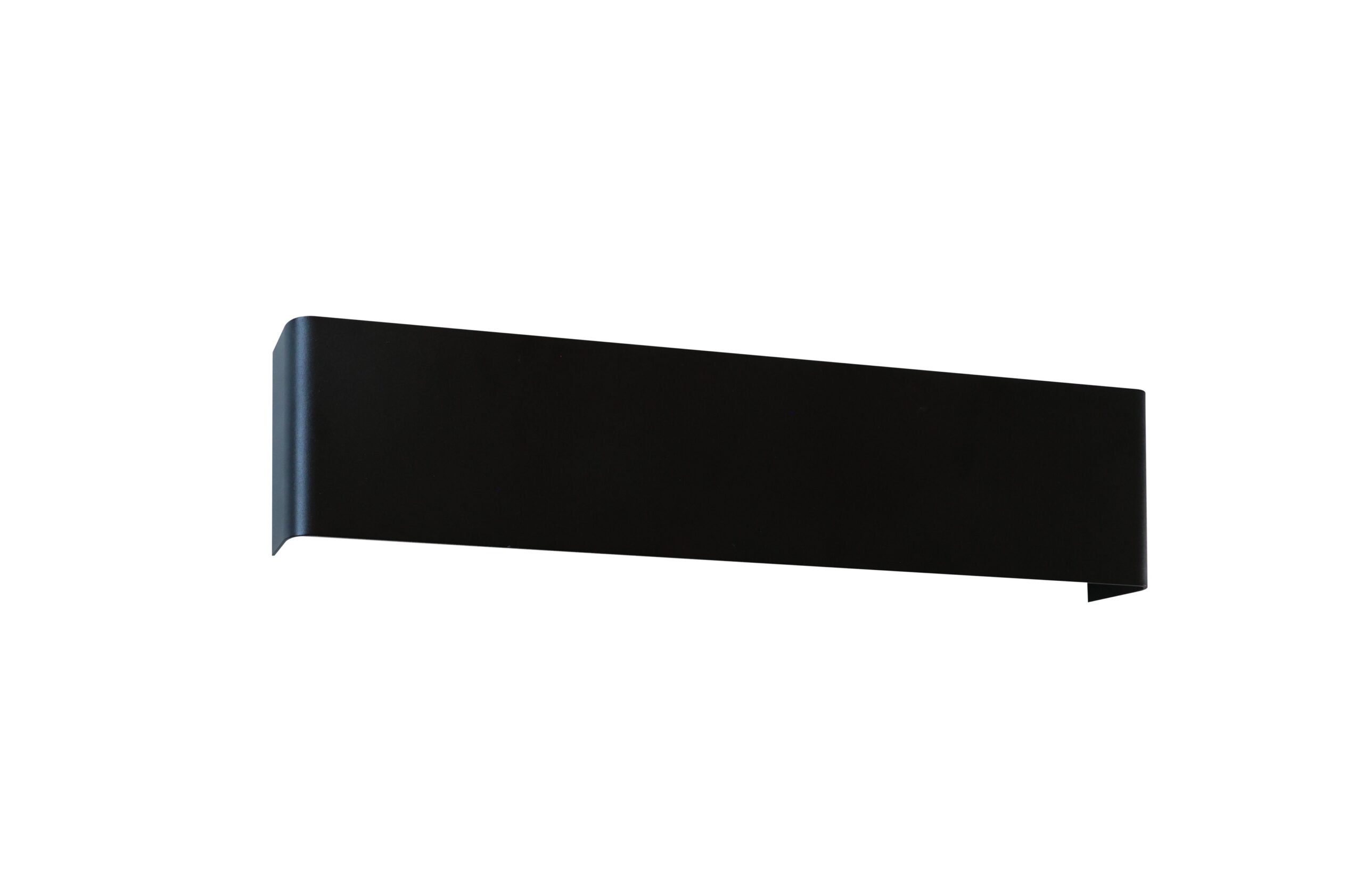

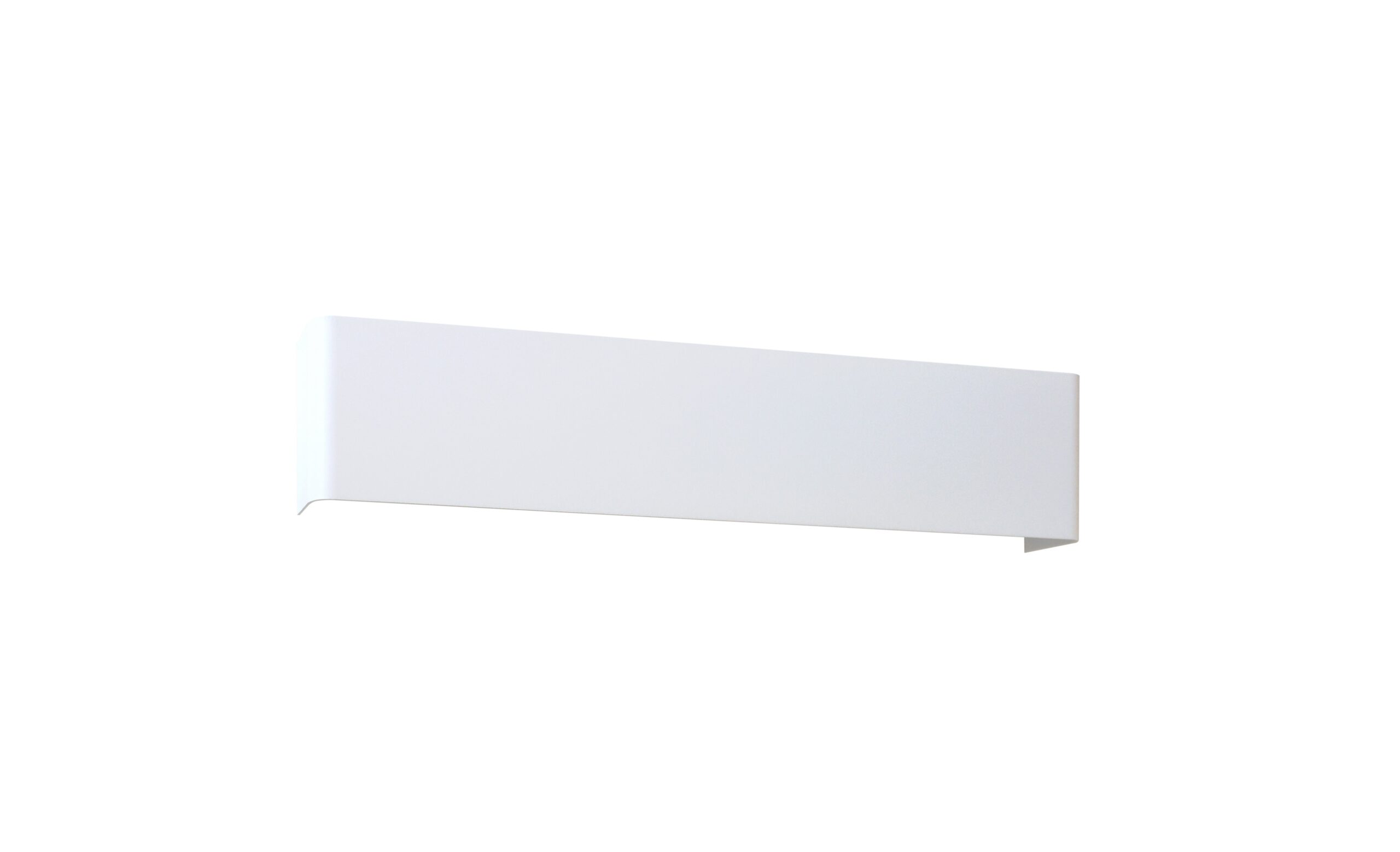

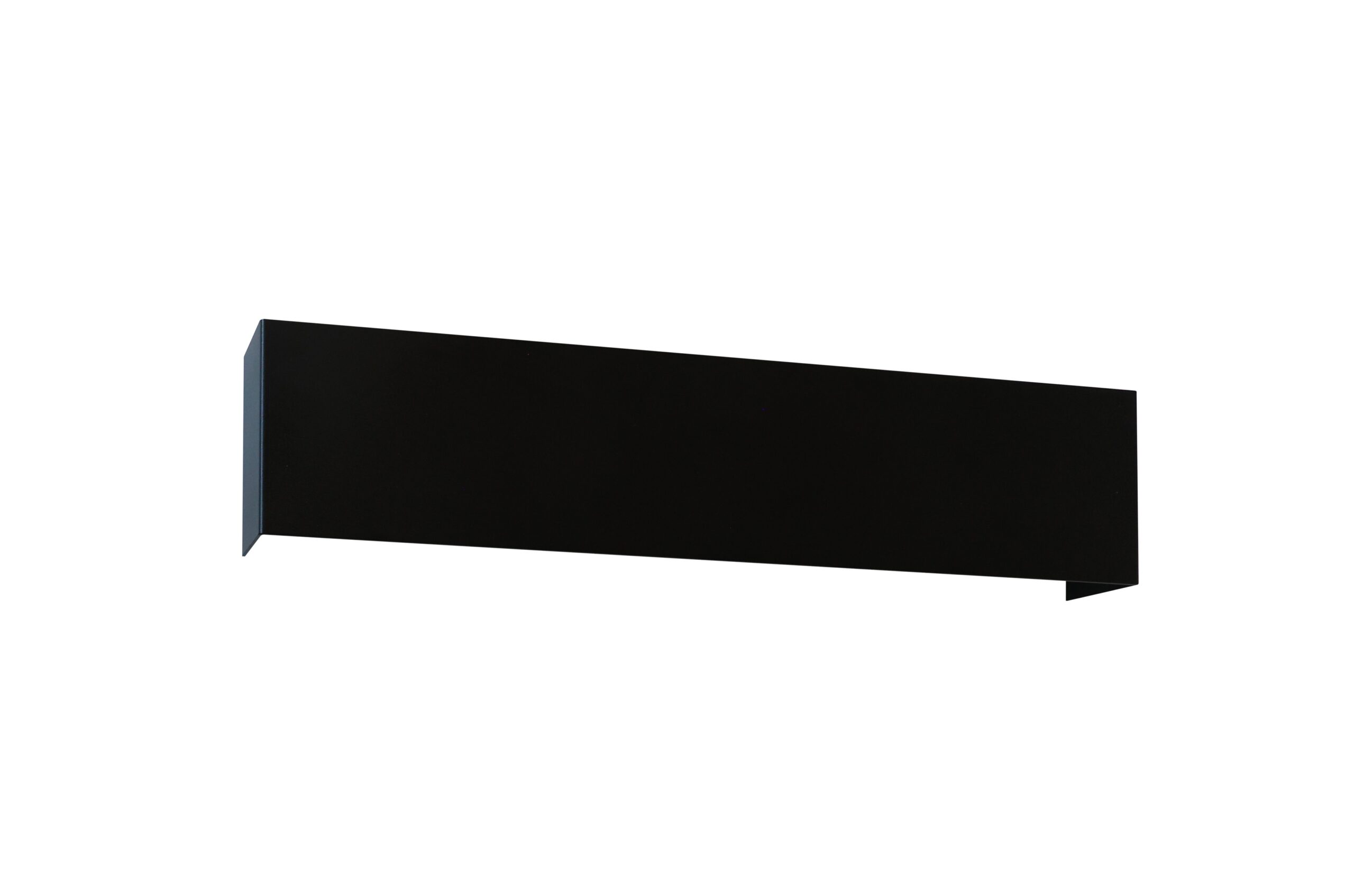

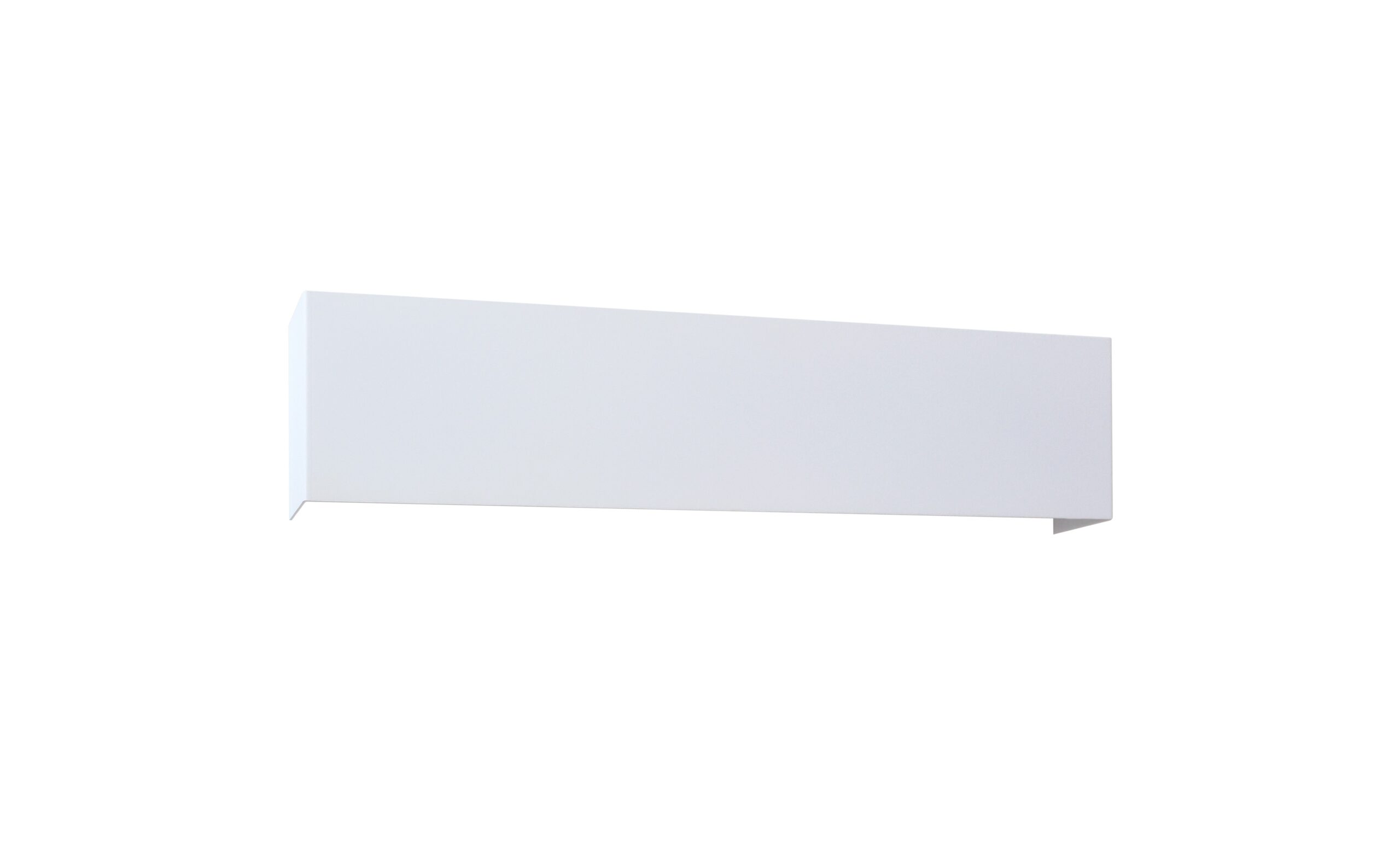

A-Click and A-Click Mini: the new family of LED linear wall luminaires, designed in two distinct sizes to offer maximum flexibility.
Characterized by extremely high efficiency, visual comfort, and glare control, this solution is ideal for offices, showrooms, commercial and residential spaces, and working environments in general.

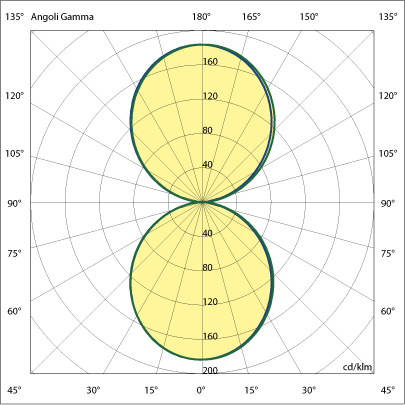

Both versions are available for both direct lighting (downlight) and direct/indirect lighting (up & down), with wattages up to 70W.
Housing: 6/10 steel sheet, painted with polyester powder to ensure excellent resistance to chemical agents.
Cover: 20/10 steel sheet, painted with polyester powder to ensure excellent resistance to chemical agents, available in a linear version or with a curved corner.
Optics: Anti-UV PMMA, available with 2 possible beams (90° TL as standard), developed with innovative ELA (Extended Light Area) and CLC (Constant Light Colour) systems.
LED Modules: Powered at 300mA, 500mA, and 700mA, manufactured with a B/C system for the reduction of shadows and reflections.
Color Temperature: 4000K, CRI>80, 3-step MacAdam.Expected lifetime: 72,000hr L80 B10 @ta25, 55,000hr L80 B10 @ta35.
Power Supply: 220-240V 50/60Hz driver, ripple-free, SP system (overload and short-circuit protection), Active PFC.
Available on request:
• CRI90 version;
• DALI dimmable driver;
• SPD 12kV;
• 1-3h SA internal emergency;
• double switching.
