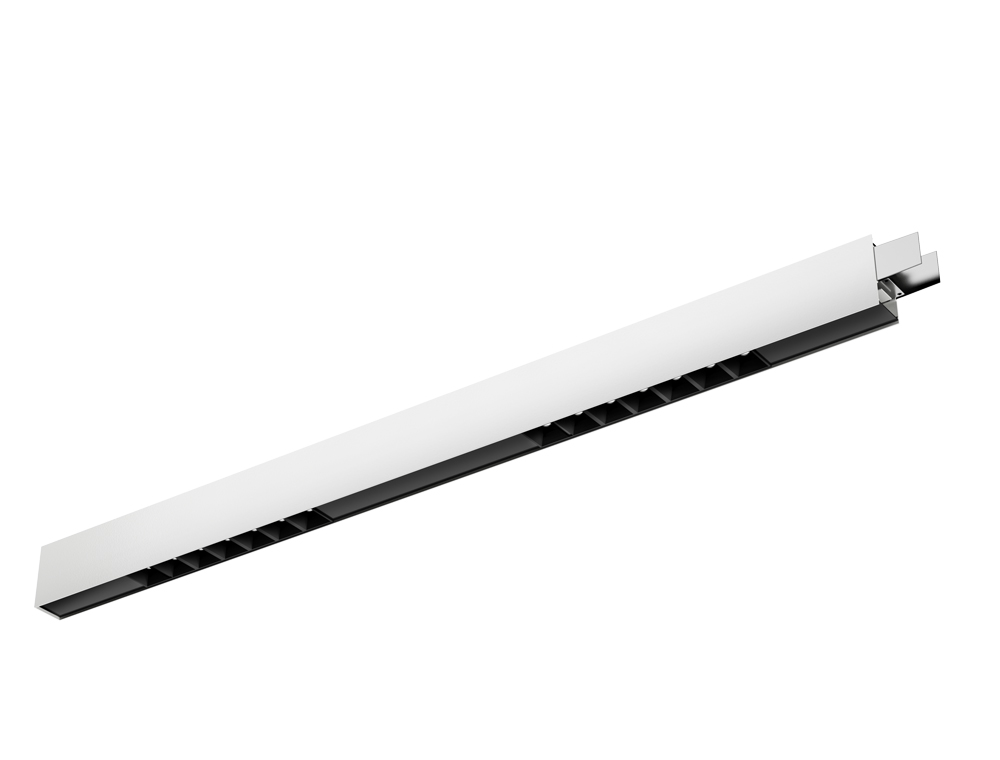

TYNDALL C-system

Continuos row linear LED system; designed for direct ceiling or suspension installation.

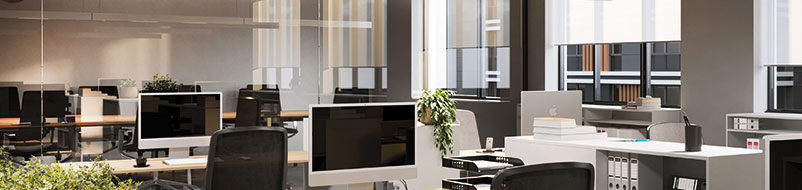

Characterized by very high efficiency, visual comfort and glare control, with single-direction downward (down) and bi-directional (up & down) light output. Combined with an elegant and minimal design. Ideal for offices, showrooms, work environments and also, commercial exhibition spaces.

Body: anodized and painted extruded aluminum profile.
Optics: PMMA, available in 90° (UGR<19) developed with CLC system (Constant Light Colour).
LED modules: powered at 350mA and 500mA.
Reflectors: Light & Dark in black PC with a fine matte finish.
Colour temperature: 3000/4000K. CRI>90 (Down) and CRI>80 (Up).
Expected lifetime: 80.000h L90B10 @ta25, 65.000h L80 B20 @tamax.
Power supply: 220-240V 50/60Hz, ripple free, SP sys-tem, Active PFC.
Ceiling fixing system: supplied as standard, composed by 2 steel springs.

Available on request:

• optic 65°;
• CRI80 version;
• SPD 12kV;
• DALI dimmable driver;
• internal 1-3h maintained emergency;
• power supply kit;
• motion sensors stand alone/wired ON-OFF or DALI;
• remote controller for twilight/motion sensor;
• control system based on Bluetooth technology.

Accessories on request:
• suspension mounting kit L= 2,5m;
• side caps kit;
• ceiling base + power supply cable;
• blind module 112cm;
• 90° blind corner joint.

Symbols

Documents

Catalog page

2D drawings

UE Declaration of conformity

HD Photo

Data sheet components

Tender specifications

Application example

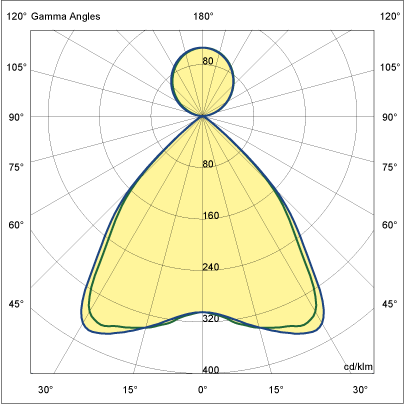

Photometric Data

Table of codes

CODE	DESCRIPTION	CURRENT (A)	W	TYPICAL FLUX (LM)	NET OUTPUT (LM)	NET WEIGHT (KG)
6529030940W.2014	Tyndall C-system - Down 13,5W 940 - 112cm, 2xLB - Fig. 1 / Code 2	350	13.5	2190	1815	2,52
					1620
					1815
6529030940W.3021	Tyndall C-system - Down 20,5W 940 - 168cm, 3xLB - Fig. 2 / Code 3	350	20.5	3285	2725	3,44
					2430
					2725
6529030940W.4027	Tyndall C-system - Down 27W 940 - 224cm, 4xLB - Fig. 3 / Code 4	350	27	4380	3635	4,62
					3240
					3635
6529030940W.2020	Tyndall C-system - Down 20W 940 - 112cm, 2xLB - Fig. 1 / Code 2	500	20	3100	2570	2,52
					2290
					2570
6529030940W.3030	Tyndall C-system - Down 30W 940 - 168cm, 3xLB - Fig. 2 / Code 3	500	30	4650	3855	3,44
					3440
					3855
6529030940W.4040	Tyndall C-system - Down 40W 940 - 224cm, 4xLB - Fig. 3 / Code 4	500	40	6200	5145	4,62
					4585
					5145


6539030940W.2018	Tyndall C-system - Down 13,5W 940 & Up 4W 840 - 112cm, 2xLB + x1LB - Fig. 1 / Code 2	350	13.5	2190 / 680	1815 / 475	2,60
					1620/ 475
					1815 / 475
6539030940W.3029	Tyndall C-system - Down 20,5W 940 & Up 8W 840 - 168cm, 3xLB + x2LB - Fig. 2 / Code 3	350	20.5	3285 / 1360	2725 / 950	3,50
					2430 / 950
					2725 / 950
6539030940W.4035	Tyndall C-system - Down 27W 940 & Up 8W 840 - 224cm, 4xLB + x3LB - Fig. 3 / Code 4	350	27	4380 / 1360	3635 / 950	4,85
					3240 / 950
					3635 / 950
6539030940W.2026	Tyndall C-system - Down 20W 940 & Up 6W 840 - 112cm, 2xLB + x1LB - Fig. 1 / Code 2	500	20	3100 / 935	2570 / 650	2,60
					2290 / 650
					2570 / 650
6539030940W.3042	Tyndall C-system - Down 30W 940 & Up 12W 840 - 168cm, 3xLB + x2LB - Fig. 2 / Code 3	500	30	4650 / 1870	3855 / 1305	3,50
					3440 / 1305
					3855 / 1305
6539030940W.4052	Tyndall C-system - Down 40W 940 & Up 12W 840 - 224cm, 4xLB + x3LB - Fig. 3 / Code 4	500	40	6200 / 1870	5145 / 1305	4,85
					4585 / 1305
					5145 / 1305

	START MODULES
6609030940W.2014	Start Module -Tyndall C-system - Down 13,5W 940 - 112cm, 2xLB - Fig. 1 / Code 2	350	13.5	2190	1815 - 1620 - 1815	2,52
6609030940W.3021	Start Module - Tyndall C-system - Down 20,5W 940 - 168cm, 3xLB - Fig. 2 / Code 3	350	20.5	3285	2725 - 2430 - 2725	3,44
6609030940W.4027	Start Module - Tyndall C-system - Down 27W 940 - 224cm, 4xLB - Fig. 3 / Code 4	350	27	4380	3635 - 3240 - 3635	4,62
6609030940W.2020	Start Module - Tyndall C-system - Down 20W 940 - 112cm, 2xLB - Fig. 1 / Code 2	500	20	3100	2570 - 2290 - 2570	2,52
6609030940W.3030	Start Module - Tyndall C-system - Down 30W 940 - 168cm, 3xLB - Fig. 2 / Code 3	500	30	4650	3855 - 3440 - 3855	3,44
6609030940W.4040	Start Module - Tyndall C-system - Down 40W 940 - 224cm, 4xLB - Fig. 3 / Code 4	500	40	6200	5145 - 4585 - 5145	4,62


6619030940W.2018	Start Module - Tyndall C-system - Down 13,5W 940 & Up 4W 840 - 112cm, 2xLB + x1LB - Fig. 1 / Code 2	350	13.5	2190 / 680	Down 1815 - 1620 - 1815 Up 475	2,60
6619030940W.3029	Start Module - Tyndall C-system - Down 20,5W 940 & Up 8W 840 - 168cm, 3xLB + x2LB - Fig. 2 / Code 3	350	20.5	3285 / 1360	Down 2725 - 2430 - 2725 Up 950	3,50
6619030940W.4035	Start Module - Tyndall C-system - Down 27W 940 & Up 8W 840 - 224cm, 4xLB + x3LB - Fig. 3 / Code 4	350	27	4380 / 1360	Down 3635 - 3240 - 3635 Up 950	4,85
6619030940W.2026	Start Module - Tyndall C-system - Down 20W 940 & Up 6W 840 - 112cm, 2xLB + x1LB - Fig. 1 / Code 2	500	20	3100 / 935	Down 2570 - 2290 - 2570 Up 650	2,60
6619030940W.3042	Start Module - Tyndall C-system - Down 30W 940 & Up 12W 840 - 168cm, 3xLB + x2LB - Fig. 2 / Code 3	500	30	4650 / 1870	Down 3855 - 3440 - 3855 Up 1305	3,50
6619030940W.4052	Start Module - Tyndall C-system - Down 40W 940 & Up 12W 840 - 224cm, 4xLB + x3LB - Fig. 3 / Code 4	500	40	6200 / 1870	Down 5145 - 4585 - 5145 Up 1305	4,85
