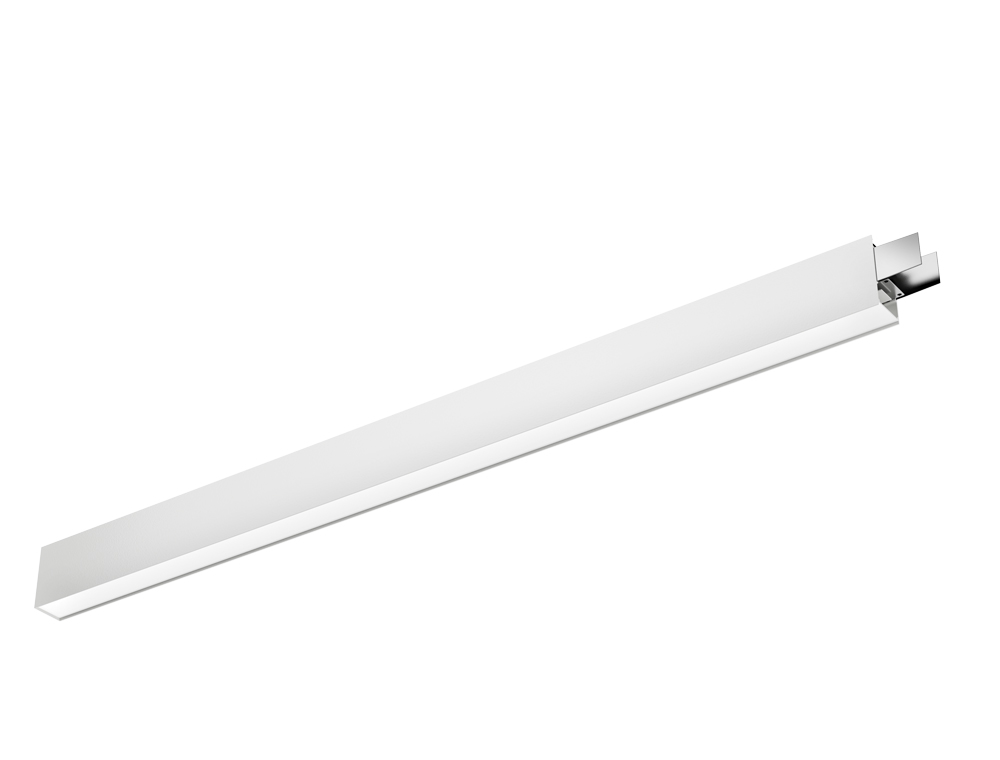

NIMBUS C-system

New stand-alone linear LED solution; designed for direct and indirect lighting as suspension installation. Characterized by very high efficiency, visual comfort and glare control, with bi-directional light output (up & down).
Combined with an elegant and minimal design. Ideal for offices, showrooms, work environments and also, commercial exhibition spaces.

Body: anodized and painted extruded aluminum profile.
Diffuser: in opal and microprismatic anti-UV PMMA.
LED modules: high efficiency, powered at 300 and 350mA.
Color temperature: 3000/4000K. CRI>80.
Expected lifetime: 80.000h L90B10 @ta25, 65.000h L80 B20 @tamax.
Power supply: 220-240V 50/60Hz, ripple free, SP system, Active PFC.
Ceiling fixing system: supplied as standard, composed by 2 steel springs

Available on request:

• Tunable White version;
• CRI90 version;
• SPD 12kV;
• DALI dimmable driver;
• internal 1-3h maintained emergency;
• power supply kit;
• motion sensors stand alone/wired ON-OFF or DALI;
• remote controller for twilight/motion sensor;
• control system based on Bluetooth technology.

Accessories on request:
• suspension mounting kit L= 2,5m;
• side caps kit;
• ceiling base + power supply cable;
• blind module 112cm;
• 90° corner joint;
• PRM Opal diffuser, supplied in a roll.

Symbols

Documents

Catalog page

2D drawings

UE Declaration of conformity

Tender specifications

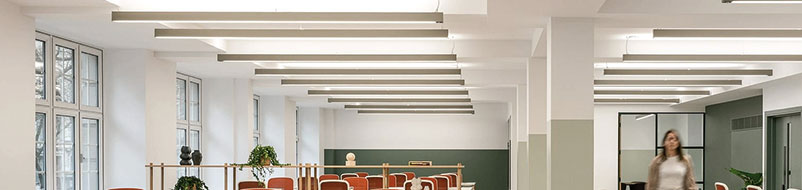

Application example

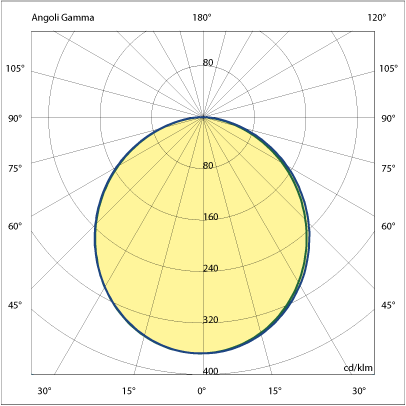

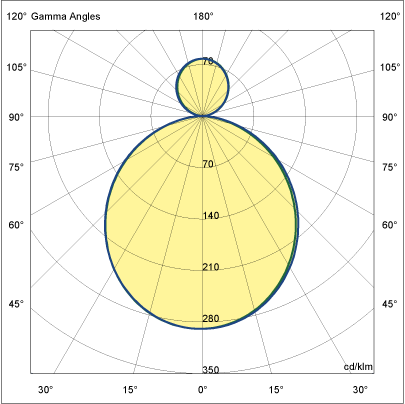

Photometric Data

Table of codes

CODE	DESCRIPTION	CURRENT (A)	W	TYPICAL FLUX (LM)	NET OUTPUT (LM)	NET WEIGHT (KG)
656MP30840W.2017	Nimbus C-system - Down 16,5W 840 - 112cm 2xLB - Fig. 1 / Code 2	350	16.5	2660	1860	2,35
656MP30840W.3025	Nimbus C-system - Down 27W 840 - 168cm, 3xLB - Fig. 2 / Code 3	350	24.5	3990	2790	3,28
656MP30840W.4033	Nimbus C-system - Down 36W 840 - 224cm, 4xLB - Fig. 3 / Code 4	350	33	5320	3720	4.30
656MP30840W.2028	Nimbus C-system - Down 18W 840 - 112cm 2xLB - Fig. 1 / Code 2	300	28	4580	3205	2,35
656MP30840W.3042	Nimbus C-system - Down 27W 840 - 168cm, 3xLB - Fig. 2 / Code 3	300	42	6870	4805	3,28
656MP30840W.4056	Nimbus C-system - Down 36W 840 - 224cm, 4xLB - Fig. 3 / Code 4	300	56	9160	6410	4.30


657MP30840W.2021	Nimbus C-system - Down 16,5W 840 & Up 4W - 112cm 2xLB + x1LB - Fig. 1 / Code 2	350	16.5	2660 / 680	1860 / 475	2,50
657MP30840W.3033	Nimbus C-system - Down 24,5W 840 & Up 8W - 168cm, 3xLB + x2LB - Fig. 2 / Code 3	350	24.5	3990 / 1360	2790 / 950	3,35
657MP30840W.4041	Nimbus C-system - Down 33W 840 & Up 8W - 224cm, 4xLB + x3LB - Fig. 3 / Code 4	350	33	5320 / 1360	3720 / 950	4,40
657MP30840W.2035	Nimbus C-system - Down 28W 840 & Up 7W - 112cm 2xLB + x1LB - Fig. 1 / Code 2	300	28	4580 / 1150	3205 / 805	2,50
657MP30840W.3056	Nimbus C-system - Down 42W 840 & Up 14W - 168cm, 3xLB + x2LB - Fig. 2 / Code 3	300	42	6870 / 2300	4805 / 1610	3,35
657MP30840W.4070	Nimbus C-system - Down 56W 840 & Up 14W - 224cm, 4xLB + x3LB - Fig. 3 / Code 4	300	56	9160 / 2300	6410 / 1610	4,40

	START MODULES
662MP30840W.2017	Start Module - Nimbus C-system - Down 16,5W 840 - 112cm 2xLB - Fig. 1 / Code 2	350	16.5	2660	1860	2,35
662MP30840W.3025	Start Module - Nimbus C-system - Down 27W 840 - 168cm, 3xLB - Fig. 2 / Code 3	350	24.5	3990	2790	3,28
662MP30840W.4033	Start Module - Nimbus C-system - Down 36W 840 - 224cm, 4xLB - Fig. 3 / Code 4	350	33	5320	3720	4,30
662MP30840W.2028	Start Module - Nimbus C-system - Down 18W 840 - 112cm 2xLB - Fig. 1 / Code 2	300	28	4580	3205	2,35
662MP30840W.3042	Start Module - Nimbus C-system - Down 27W 840 - 168cm, 3xLB - Fig. 2 / Code 3	300	42	6870	4805	3,28
662MP30840W.4056	Start Module - Nimbus C-system - Down 36W 840 - 224cm, 4xLB - Fig. 3 / Code 4	300	56	9160	6410	4,30


663MP30840W.2021	Start Module - Nimbus C-system - Down 16,5W 840 & Up 4W - 112cm 2xLB + x1LB - Fig. 1 / Code 2	350	16.5	2660 / 680	1860 / 475	2,50
663MP30840W.3033	Start Module - Nimbus C-system - Down 24,5W 840 & Up 8W - 168cm, 3xLB + x2LB - Fig. 2 / Code 3	350	24.5	3990 / 1360	2790 / 950	3,35
663MP30840W.4041	Start Module - Nimbus C-system - Down 33W 840 & Up 8W - 224cm, 4xLB + x3LB - Fig. 3 / Code 4	350	33	5320 / 1360	3720 / 950	4,40
663MP30840W.2035	Start Module - Nimbus C-system - Down 28W 840 & Up 7W - 112cm 2xLB + x1LB - Fig. 1 / Code 2	300	28	4580 / 1150	3205 / 805	2,50
663MP30840W.3056	Start Module - Nimbus C-system - Down 42W 840 & Up 14W - 168cm, 3xLB + x2LB - Fig. 2 / Code 3	300	42	6870 / 2300	4805 / 1610	3,35
663MP30840W.4070	Start Module - Nimbus C-system - Down 56W 840 & Up 14W - 224cm, 4xLB + x3LB - Fig. 3 / Code 4	300	56	9160 / 2300	6410 / 1610	4,40
