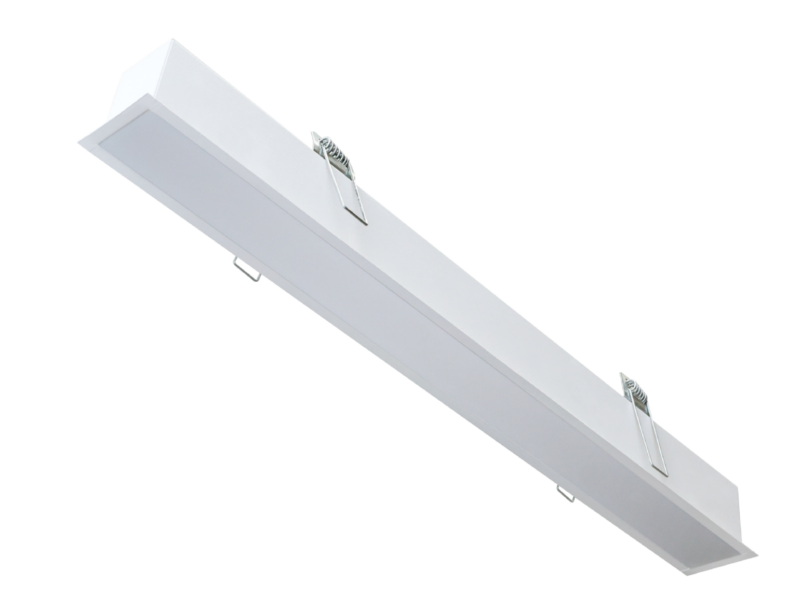

ARIA R

LED linear stand-alone luminaire, designed for recessed installation. Characterized by a remarkable high efficiency, visual comfort and glare control. Ideal for offices, showrooms, supermarkets, open spaces, retail, work areas.

Housing: 6/10 steel sheet, painted with polyester powders to guarantee an excellent resistance to chemical agents.
Diffuser: PMMA anti-UV.
LED modules: powered at 250mA and 425mA, realized with B/C system, for the reduction of shadows and reflections.
Color temperature: CCT 4000K, CRI>80, 3-step MacAdam.
Lumen maintenance: 72.000h L80 B10 @ta25, 55.000h L80 B10 @ta40.
Power: 220 ÷ 240V 50/60Hz driver, ripple free, SP system (overcharge and short circuit protection), Active PFC.
Cardboard hole dimensions: version 59cm = 575x60mm, version 115cm = 1145x60mm, version 171cm = 1700x60mm.

Available on request:
• internal 1-3h maintained emergency;
• DALI driver;
• internal 10kV SPD.

Symbols

Documents

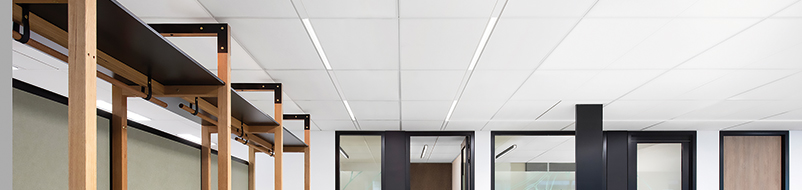

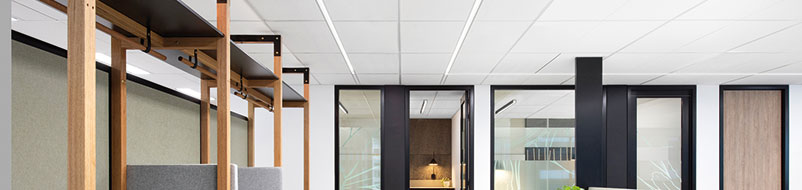

Application example

Photometric Data

Table of codes

CODE DESCRIPTION CURRENT (A) W TYPICAL FLUX (LM) NET OUTPUT (LM) NET WEIGHT (KG) DATASHEET
735OP01840W.1010 59cm 840 250 10 1860 1300 1,80
735OP01840W.2020 115cm 840 250 20 3720 2600 2,60
735OP01840W.3030 171cm 840 250 30 5580 3905 3,60
735OP01840W.1017 59cm 840 425 17 3140 2195 1,80
735OP01840W.2034 115cm 840 425 34 6280 4395 2,60
735OP01840W.3051 171cm 840 425 51 9420 6590 3,60
