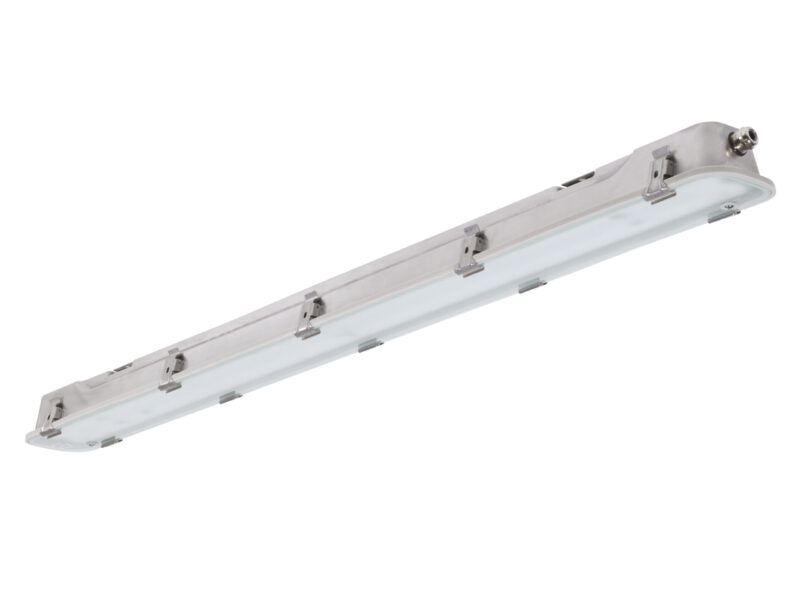

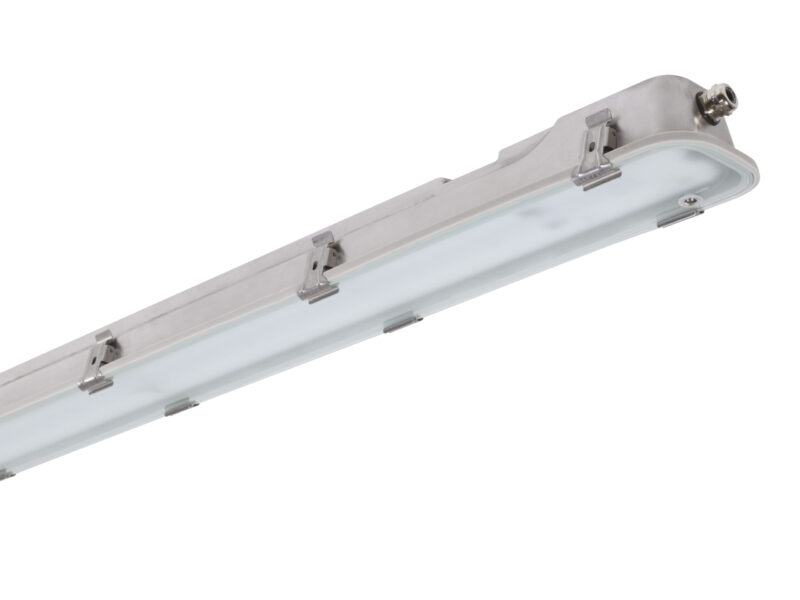

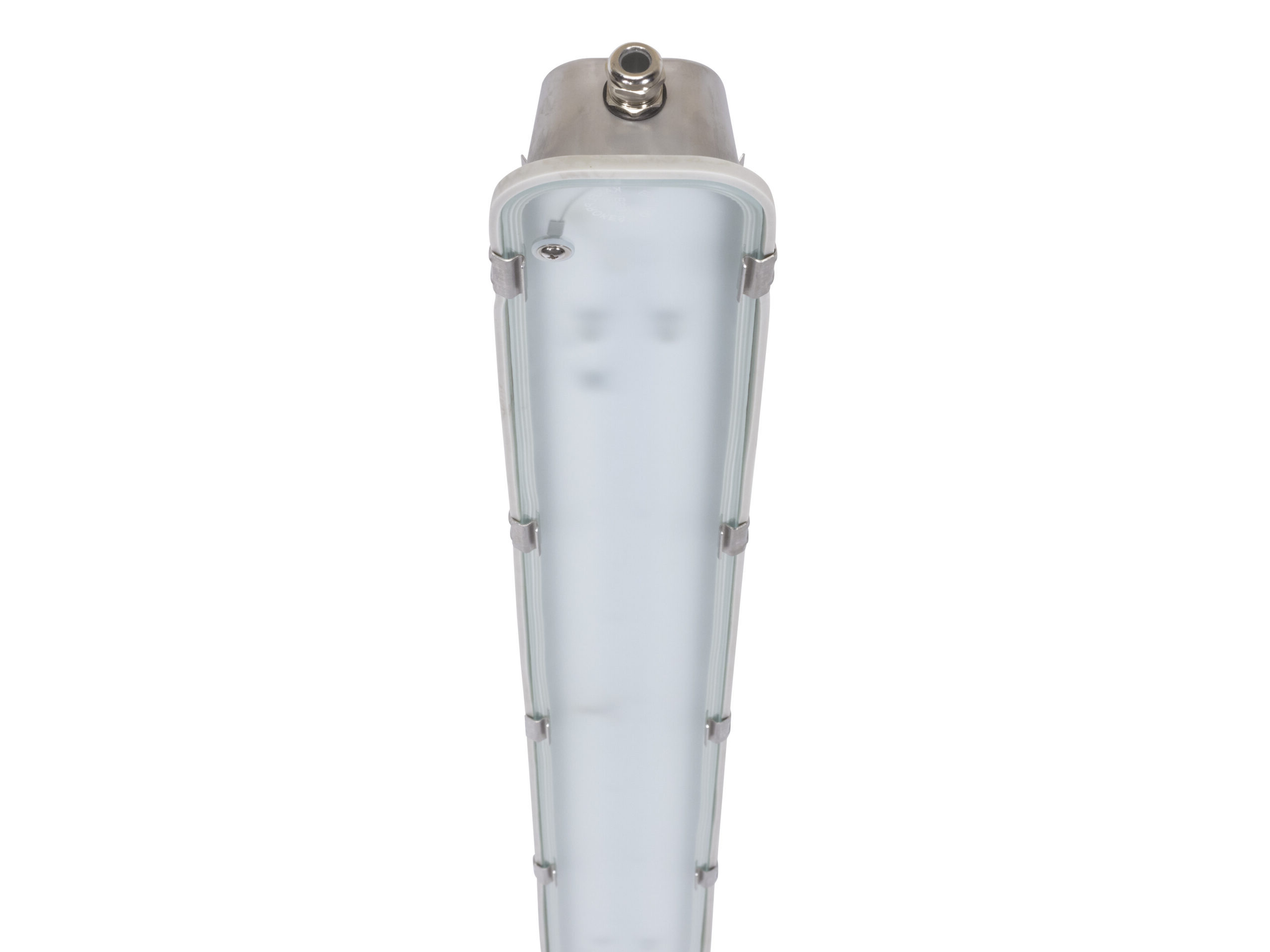

FORTE INOX SLIM

Waterproof led ceiling luminaire stainless steel body, ideal for industrial environments lighting, where there is the need to use a product resistant to impacts and chemical and corrosive agents.

Housing: stainless steel AISI 304, pressed in one piece.
Gasket: pure silicon.
Screen: frosted finishing 4mm glass with screen printing.
Cooling plate: aluminium sheet.
LED modules: 450/650mA current, 4000K colour, CRI80.
Expected lifetime: 100.000h L80 B10 @ta25; 60.000h L80 B20 @ta45.
Power supply: 220/240V 50/60Hz with electronic ballast, ripple free, SP system, Active PFC.
Mounting system: stainless clips supplied as standard for direct wall/ceiling fixing or suspended.

Available on request:

  • internal 1-3h maintained emergency;
  • DALI driver;
  • pass-through wiring
  • internal 10kV SPD.

Symbols

Documents

Application example

Photometric Data

Table of codes

CODE DESCRIPTION CURRENT (A) W TYPICAL FLUX (LM) NET OUTPUT (LM) NET WEIGHT (KG) DATASHEET
350OP01840U.1011 68cm 840 450 11 1720 1460 2,40
350OP01840U.2022 129cm 840 450 22 3440 2920 4,30
350OP01840U.3027 160cm 840 450 27 4300 3655 5,40
350OP01840U.1021 68cm 840 450 21 3500 2975 2,40
350OP01840U.2041 129cm 840 450 41 6870 5835 4,30
350OP01840U.3052 160cm 840 450 52 8580 7290 5,40
350OP01840U.1030 68cm 840 650 30 4920 4180 2,40
350OP01840U.2060 129cm 840 650 60 9840 8360 4,30
350OP01840U.3075 160cm 840 650 75 12290 10445 5,40
