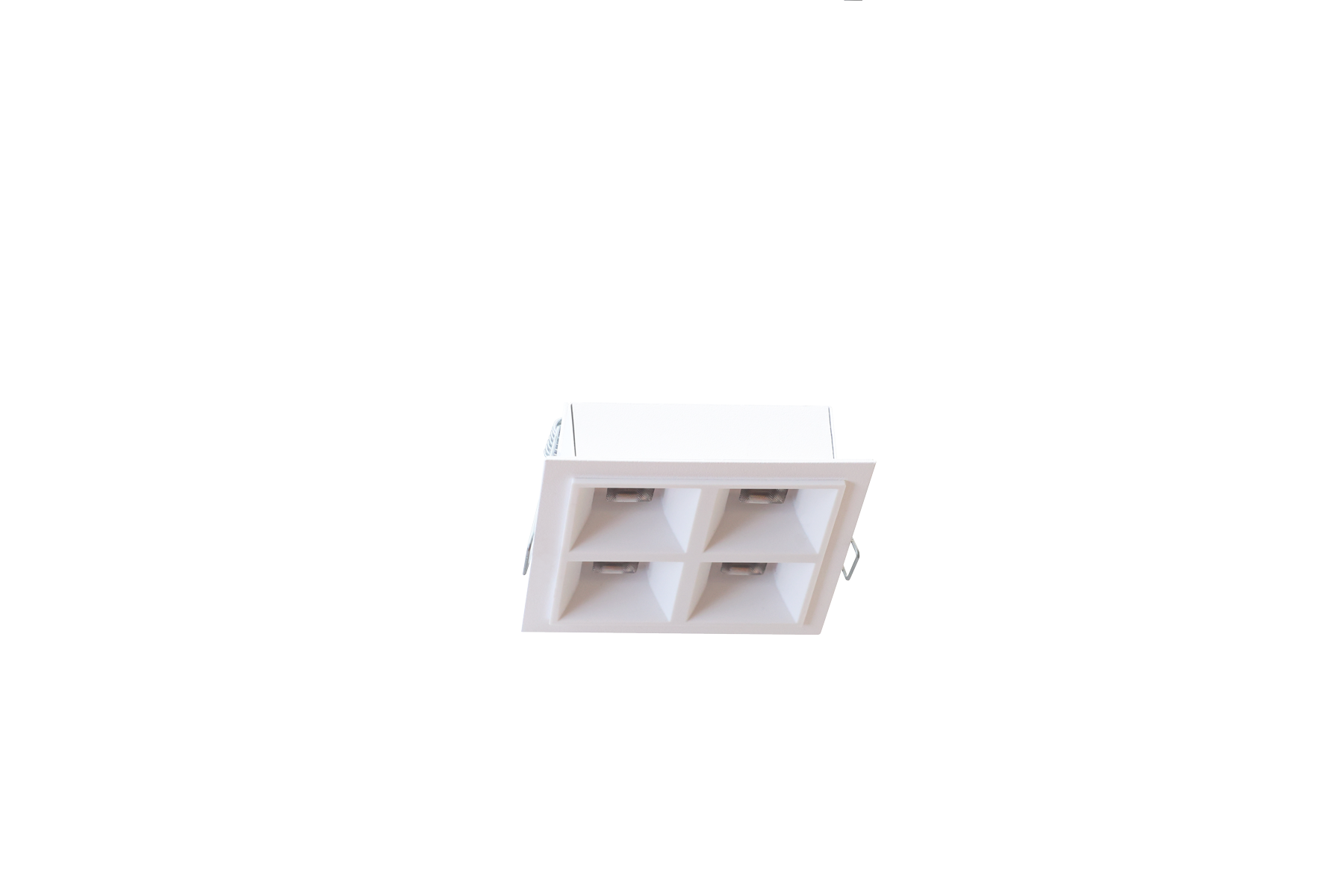

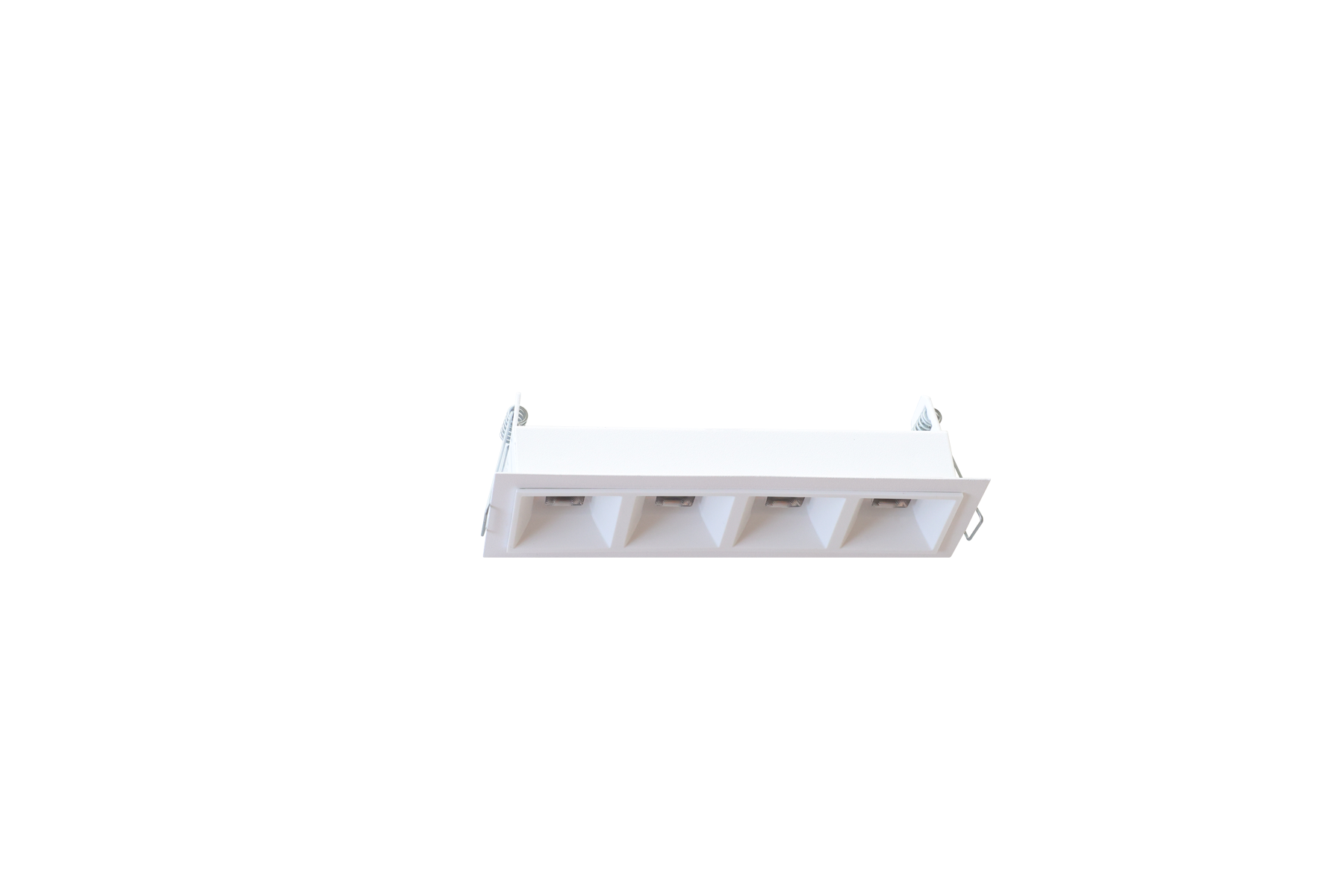

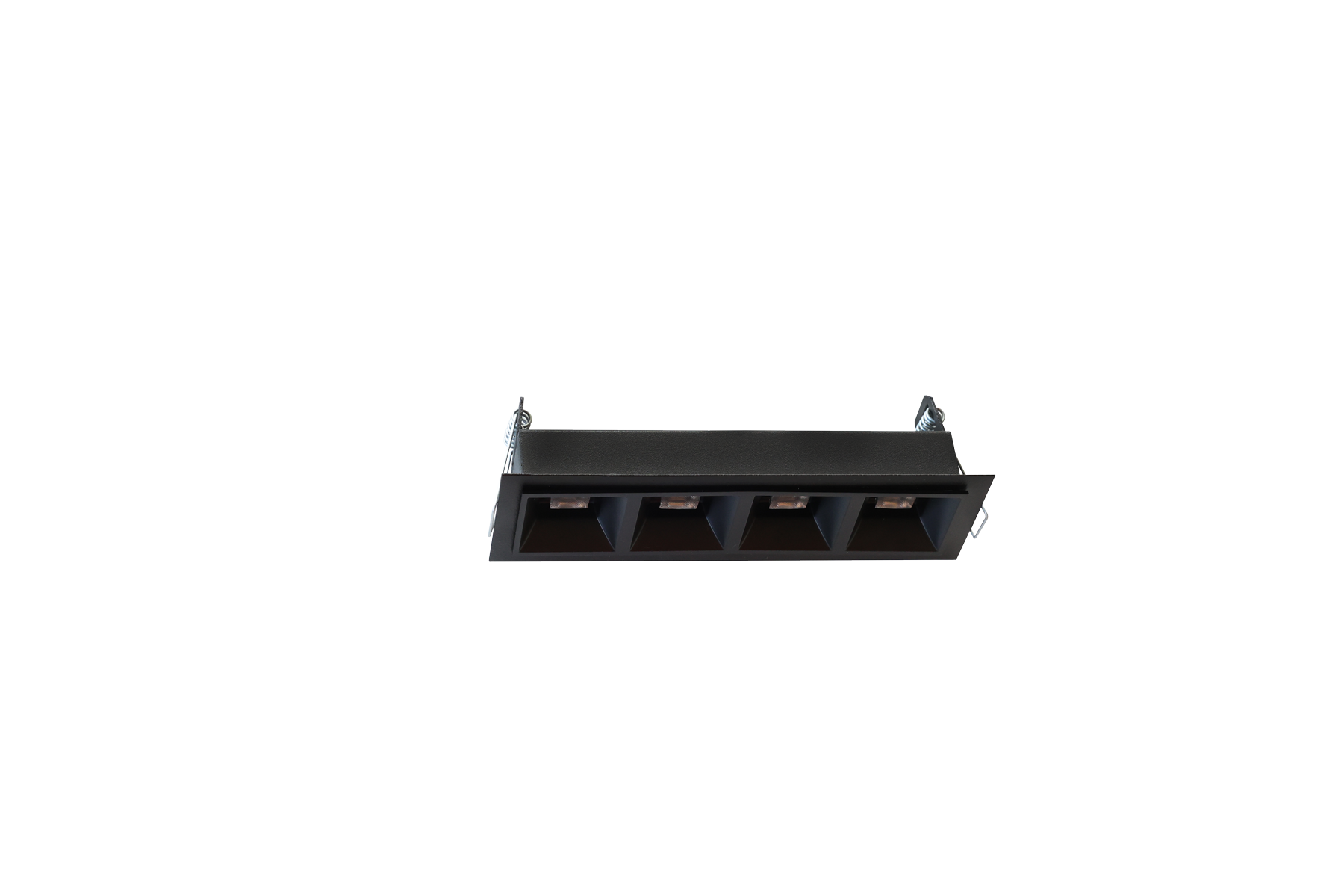

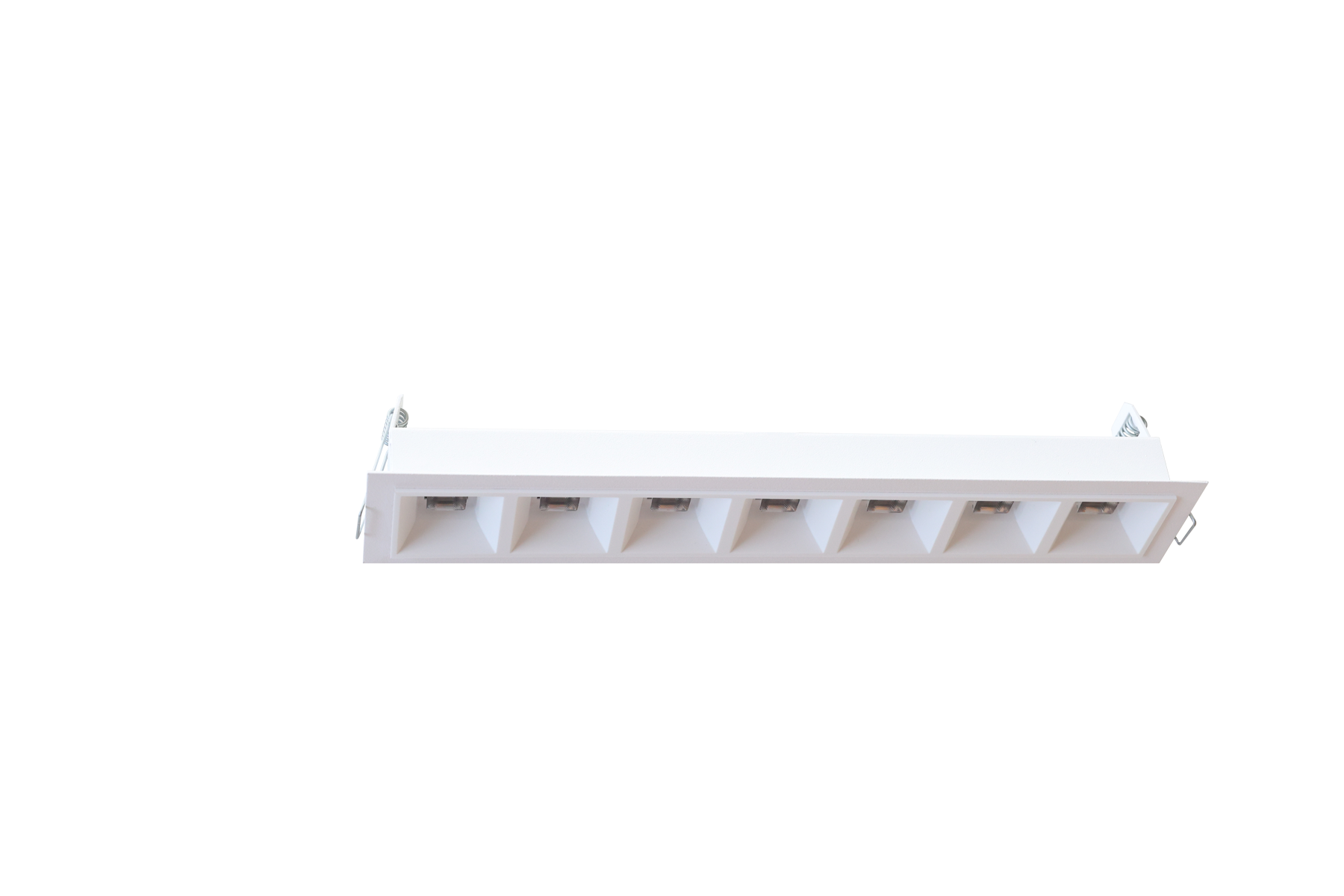

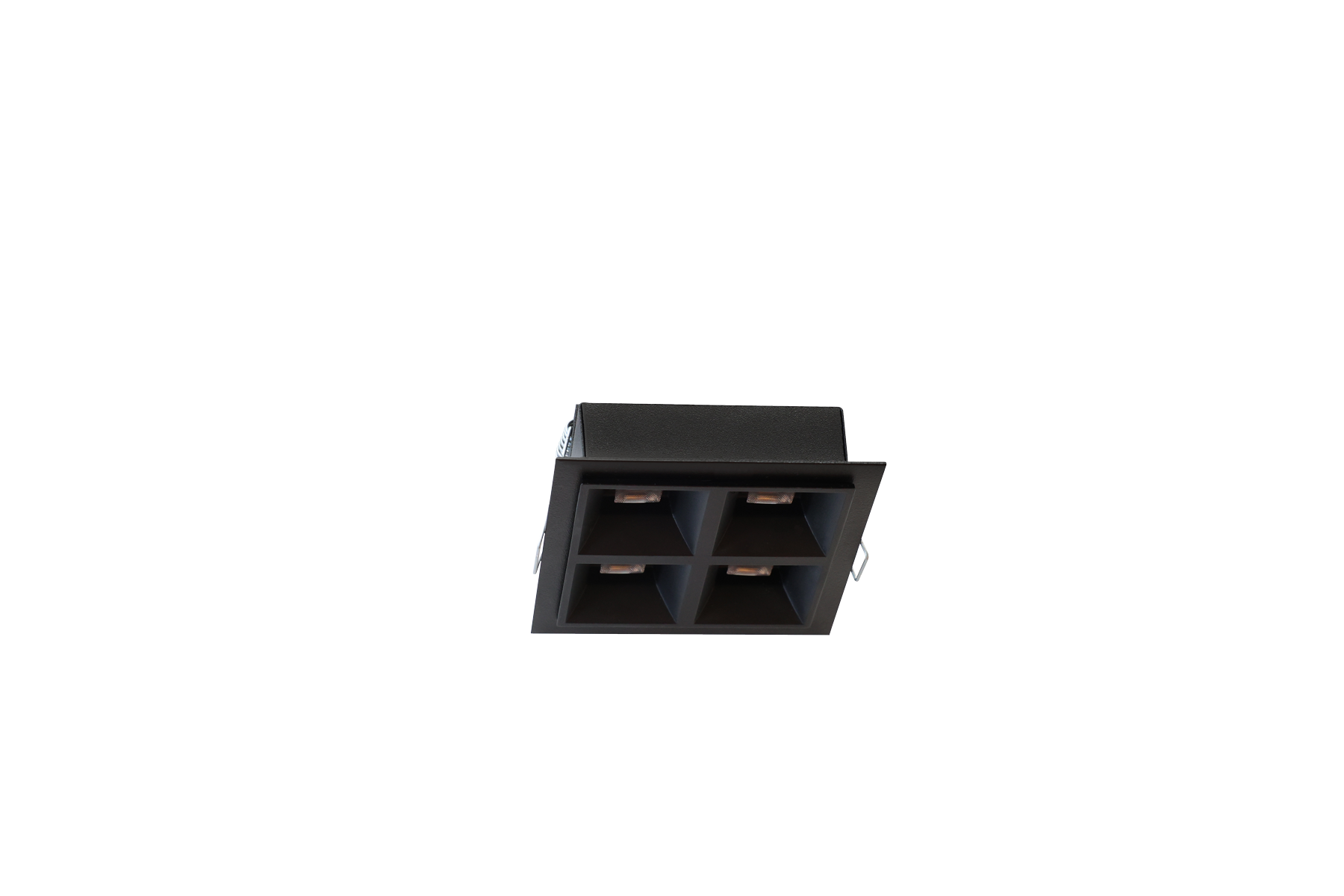

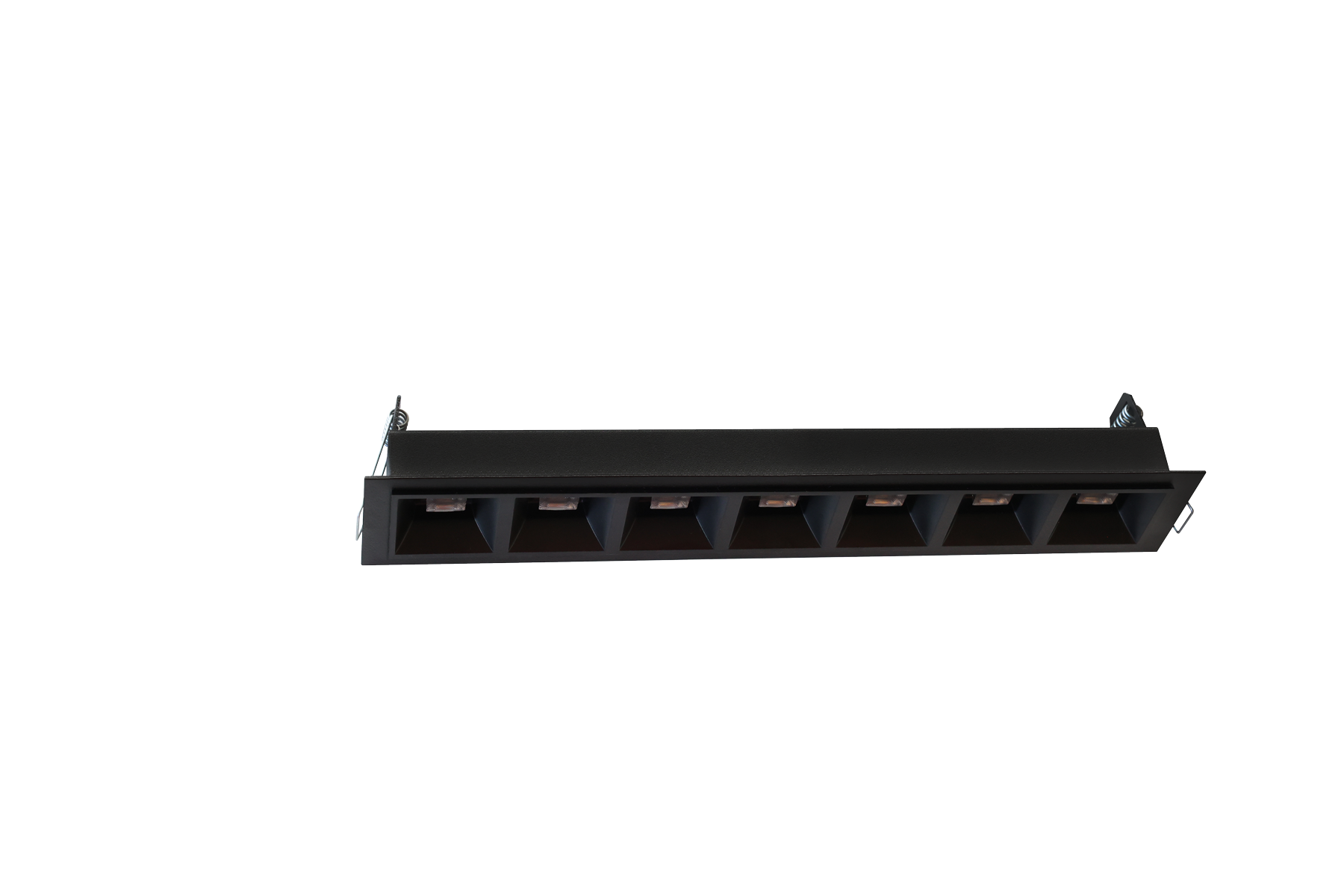

Led recessed spot, designed for free installation on cardboards or 60×60 modula panels, featured by high efficiency, visual confort and glare control. Suitable for offices, showrooms, commercial expo, private, and residential areas.
Housing: 6/10 steel sheet, painted with polyester powders to guarantee an excellent resistance to chemical agents, steel springs.
Diffuser: PMMA, available in 90° (UGR<19) developed with CLC system (Constant Light Color).
Reflector: DARK in PC, abvailable in three different colours, White, Black, and Translucent with matt surfaces.
LED modules: high efficiency, powered at 350, 500 and 700mA.
Color temperature: 3000/4000K. CRI>90.
Expected lifetime: 72.000h L80B10 @ta25, 55.000h L80B10 @tamax.
External Power supply: driver 220-240V 50/60Hz, ripple free, SP system, Active PFC
Foro incasso cartongesso: version 2×2 = 82x88mm, version 7×1 = 282x38mm, version 4×1 = 162x38mm.
Available request:
• DALI dimmable driver;
• Casambi device;
• external emergency 1-3h.
Accessories on request:
• sensori di movimento stand alone/cablato ON-OFF o DALI;
• telecomando per sensore crepuscolare/movimento.
CCT 3000K- 4000K Standard
I flussi luminosi dei prodotti sono stati calcolati considerando il valore tipico (@ ta25° stnd) dichiarato dal produttore dei LED. Possono essere dunque considerate delle tolleranze sui lotti di produzione di +/-5%. I valori dichiarati sui prodotti fanno riferimento alla colorazione standard 4000K.
