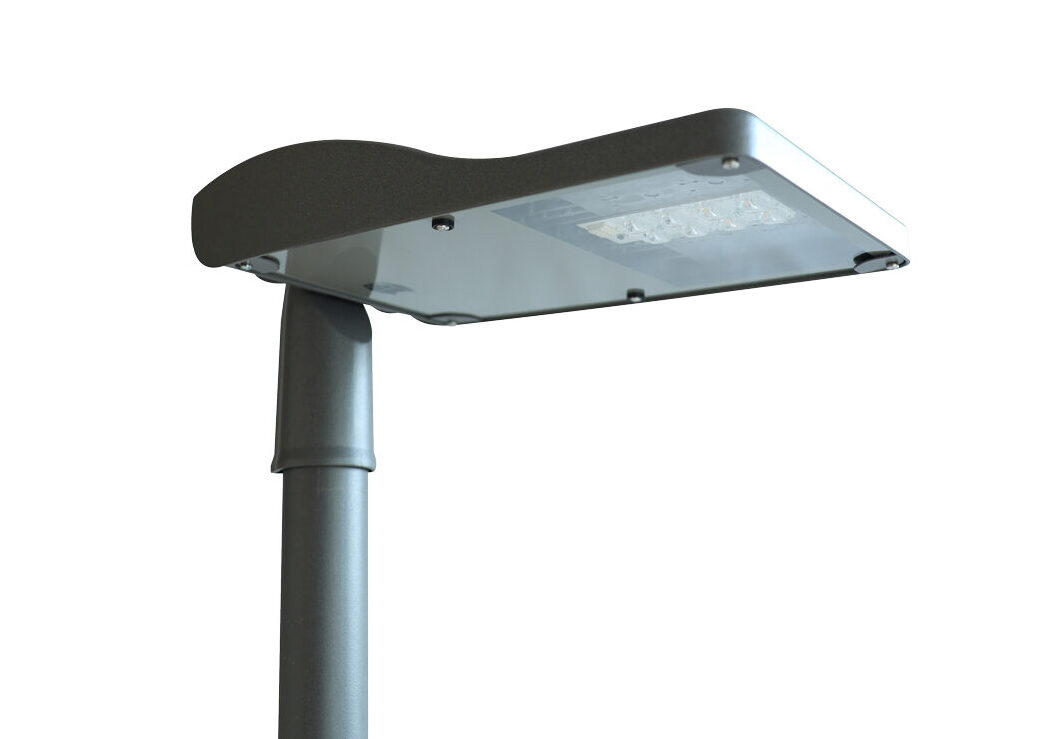

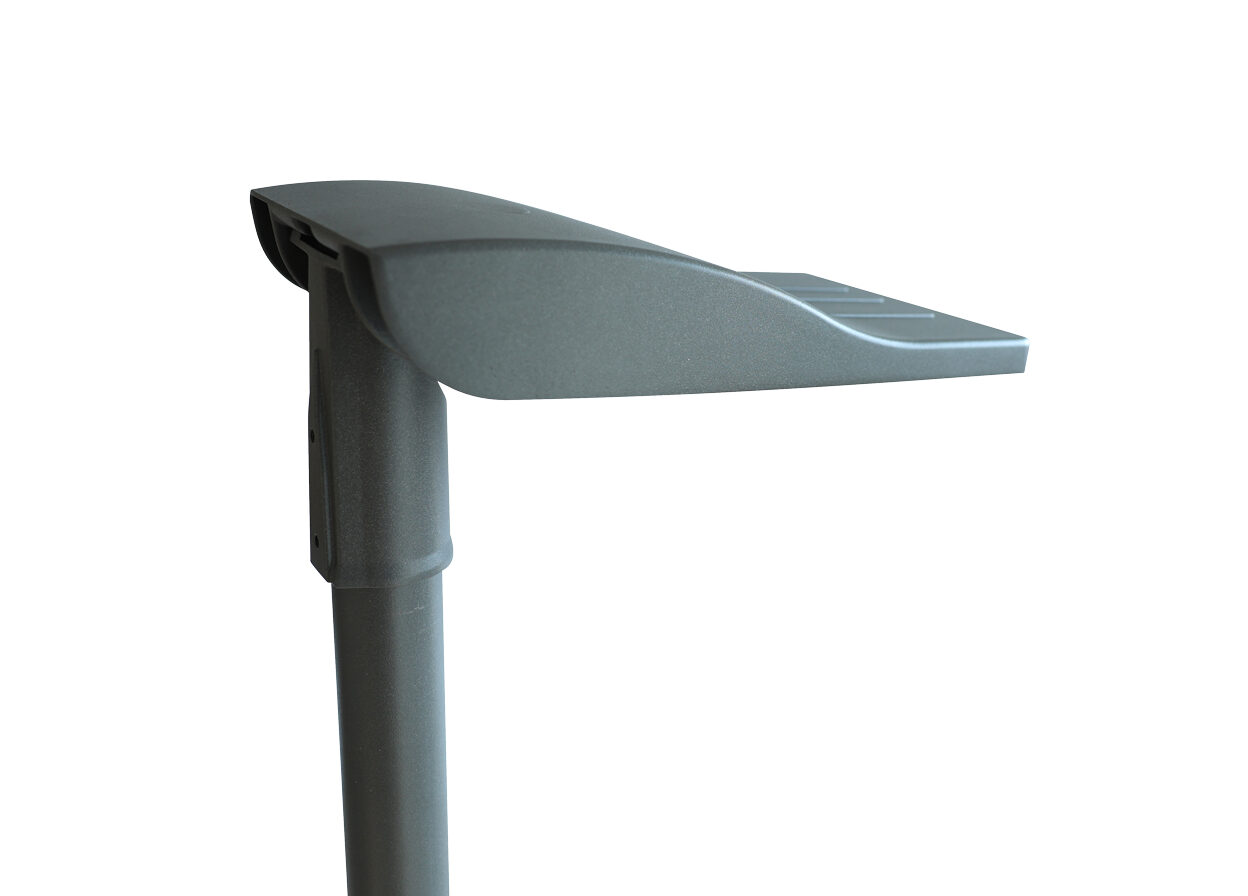

High-performance LED street lighting luminaire, designed for long-term reliability and low environmental impact. Ideal for urban, roadway, and decorative street lighting.
Housing: Manufactured in die-cast aluminum EN AB 46100.
Pole Mount: Standard Ø 60 mm in die-cast aluminum.
Finishing: Thermosetting polyester powder coating, following degreasing and phosphochromatization treatments to ensure superior resistance to chemical and atmospheric agents.
Safety Glass: 4 mm extra-clear tempered glass, silk-screened.
LED Modules: Zhaga 4×2 and 6×2, CRI>70, CCT 4000K.
Lumen Maintenance: 80,000h L80 B20 @ta25 and 55,000h L80 B20 @ta45.
Lens: Injection-molded UV-resistant PMMA multi-lens clusters, compliant with UL94 HB and Zhaga standards.

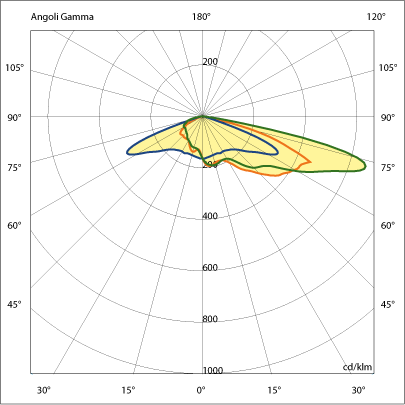

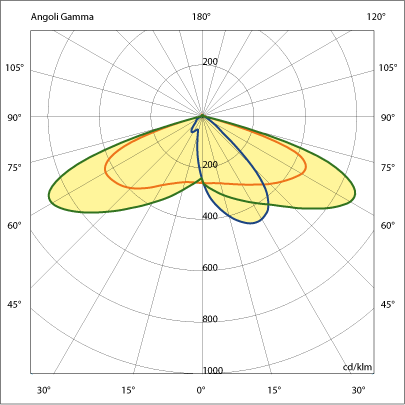

Optics: Available in AS 55° asymmetric, ME roadway, and CYC pedestrian and cycle paths.
Power Supply: Electronic 220–240V 50-60Hz; surge protection 6/10kV.
Installation: Integrated 90° swivel system allowing for both post-top and side-entry (arm) installation. Adjustable tilt range from -10° to +25°.
